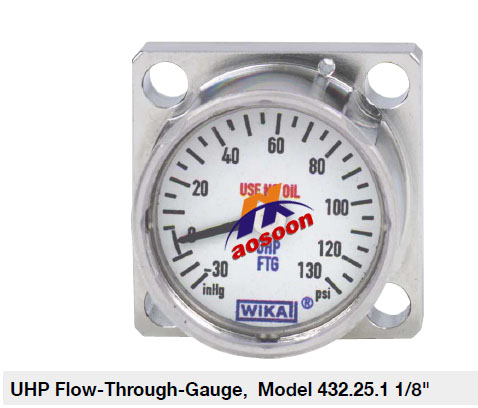

德国威卡wika超高压压力表432.25.1   威卡wika压力表

Applications

Suitable for gaseous, liquid and corrosive media, also in a corrosive environment, for demanding high purity

Applications.Semiconductor and flat panel industry

Gas distribution systems

Medical gases

Hook-up-application



Special features

No dead volume in the pressure gauge

Low internal volume for reducing particle generation and entrapment

Compact design

Helium leak tested, leak rate ≤ 10-9 mbar l/s

Electropolished internals and case, internal surface finish Ra ≤ 0.25 µm



Description

Nominal size:1 1/8"

Accuracy class:Grade C according to ASME B40.1



Scale ranges

- 30 inHg … 60 psi

- 30 inHg … 130 psi



Operating temperature

Ambient: -10 … + 60 °C

Medium: +60 °C maximum



Pressure connection

Modular Surface Mount (MSM), C-seal



Pressure element

Inconel



Dial

White aluminium, with black lettering



Pointer

Black aluminium



Case

Material: stainless steel 316L, electropolished



Window

One piece polycarbonate
