WIKA机械压力仪表

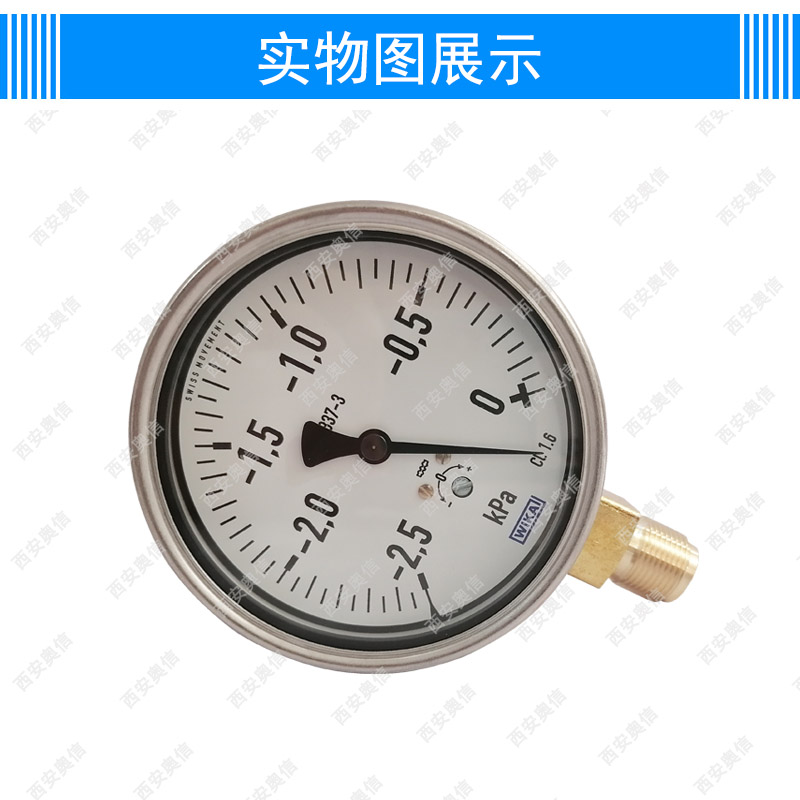

WIKA威卡压力表 611.10.063 德国威卡膜盒压力表 611.10，WIKA威卡压力表 611.10.063膜盒压力表611.10
技术参数
Model: 611.10
Specifications according to data sheet: PM 06.01
Accuracy class: class 1.6
Measuring system: copper alloy
Nominal size: 063 mm
Unit: mbar
Scale range: -160 mbar...0 mbar
Second dial scale: MPa
Process connection: R 1/4-***7 (DIN2999)
Connector location: lower mount
Window: acrylic (PMMA)
Case type: without blow-out disc on top
Accuracy class: class 1.6
Movement: copper alloy
Ingress protection: IP 32
Packaging: single packing
Case: black steel
Case colour: black
Pointer colour: black

应用
用在受保护环境中的压力表
用于医学、真空、***、实验室应用中的物料含量测量和过滤器监测
适用于气体、干燥和非侵蚀性介质

常用型号
611.10.050 0 mbar...100 mbar G1/4B center back mount
611.10.063 0 inH2O...30 inH2O 1/4 NPT lower mount
611.10.063 0 mbar...100 mbar 1/4 NPT lower mount
611.10.063 0 mbar...250 mbar 1/4 NPT lower mount
611.10.063 0 mbar...250 mbar G1/4B center back mount
611.10.063 -30 in.WC...30 in.WC 1/4 NPT lower mount
611.10.063 -60 mbar...0 mbar 1/4 NPT center back mount
611.10.063 -60 mbar...0 mbar G1/4B lower mount
WIKA威卡压力表 611.10.063膜盒压力表611.10
