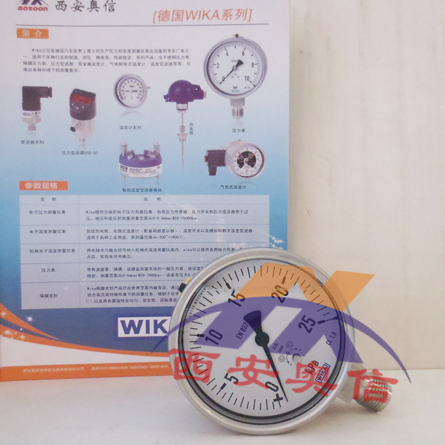

632.50.100德国wika不锈钢膜盒压力表 633.50.063耐震压力表

仪器名称：632.50.100德国wika不锈钢膜盒压力表 633.50.063耐震压力表

仪器类别：WIKA机械压力仪表

市场价格：洽谈

咨询电话：029-86691808 88623902 传真：029-88638823-810

在线业务

632.50.100德国wika不锈钢膜盒压力表 633.50.063耐震压力表

常用型号
633.50.100 0 kPa...10 kPa 1/2 NPT lower mount
633.50.100 0 kPa...25 kPa 1/2 NPT lower mount
633.50.100 0 kPa...25 kPa M20 x 1.5 lower mount
633.50.100 0 kPa...40 kPa 1/2 NPT lower mount
633.50.100 -10 kPa...0 kPa G1/2B lower back mount
633.50.100 -600 mbar...0 mbar G1/2B lower back mount
633.50.160 0 kPa...25 kPa 1/2 NPT lower mount
633.50.160 0 mbar...200 mbar G1/2B lower mount
633.50.160 0 mbar...500 mbar 1/2 NPT lower mount
应用
带可充液外壳，可用于具有高动态压力脉冲或震动的应用场合
适用于干燥的侵蚀性气体介质以及侵蚀性环境中
过程工业：化工、石化、制药、生物技术、机械和发电工业
技术参数
测量范围：0 ... 0.25 kPa
Capsule pressure gauge, process industry series
Model: 633.50
Measuring system: stainless steel
Case: stainless steel
Bezel ring: cam ring (bayonet type), stainless steel
Movement: stainless steel
Case filling: with
Nominal size: 100 mm
Unit: kPa
Second dial scale: kPa
Process connection: 1/2 NPT
Connector location: lower mount
Window: acrylic (PMMA)
Case type: case with blow-out disc back
Accuracy class: class 1.6
Movement: stainless steel
Ingress protection: IP 65
Case filling fluid: glycerine 86.5% (FDA)
Packaging: single packing
Case surface: bare
Pointer: standard pointer
Pointer colour: black
Permissible medium temperature: Standard
Permissible ambient temperature: Standard
Case material: Stainless steel
Dial deion:
Pressure Gauge Standard: International (standard Europe)
color for 1.scale (outside): black
color for 2.scale (inside): red RAL 3020
dial background: White
accuracy class on dial: *Cl.1.6*
