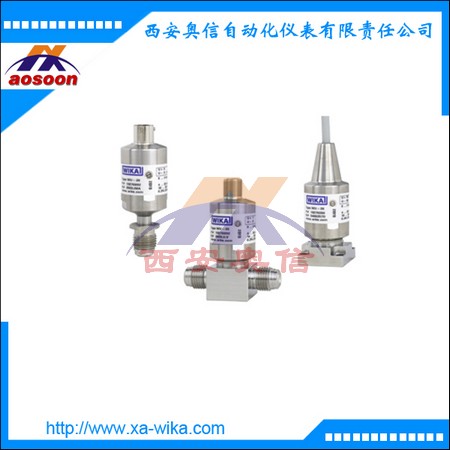

WIKA压力变送器

应用
气体面板（OEM工具）
半导体、平板显示器和太阳能光伏产品
特种气体和大宗气体分配
功能特性
紧凑型设计
ATEX Zone 2 防爆认证
自动温度补偿
***的长期稳定性
符合RoHS指令
参数
量程
0 ... 0.1 MPa 至 0 ... 36 MPa
精度
0,15 % RSS
输出信号
4 ... 20 mA，2- 线制
0 ... 10 V，3 - 线制
0 ... 5 V，3 - 线制
过程连接
1/4" VCR
1/2" VCR
型焊接接头
焊接接头
电气连接
圆形接头 M12x1， 4-pin
电缆出线盒，IP 67
卡口接头，4-pin
Sub-D HD接头，15-pin
Description
Reliable
The WU-2x series combines state-of-the-art digital transducer
concepts with analogue-like output signals, in order to provide
the safest and most accurate pressure measurements
necessary for today’s market requirements.
Pressure measurement, based on a true vacuum reference,
and electronic measures for interference shielding and
signal noise cancellation ensure high-accuracy pressure
measurement and excellent long-term stability.
Active temperature compensation reduces the impact of
changing temperatures on the transducer, allowing safe
operations even in applications with high fluctuations in
temperature, e.g. Joule-Thomson effect in the case of gas
expansion.
WU-25 (flow through) and WU-26 (surface mount)
transducers are specifically designed to sustain torsionapplied
stresses often incurred during installation. The
special design of the thin-film sensor eliminates the risk of
sensor failure due to loads at the process connection or
welded joints.
